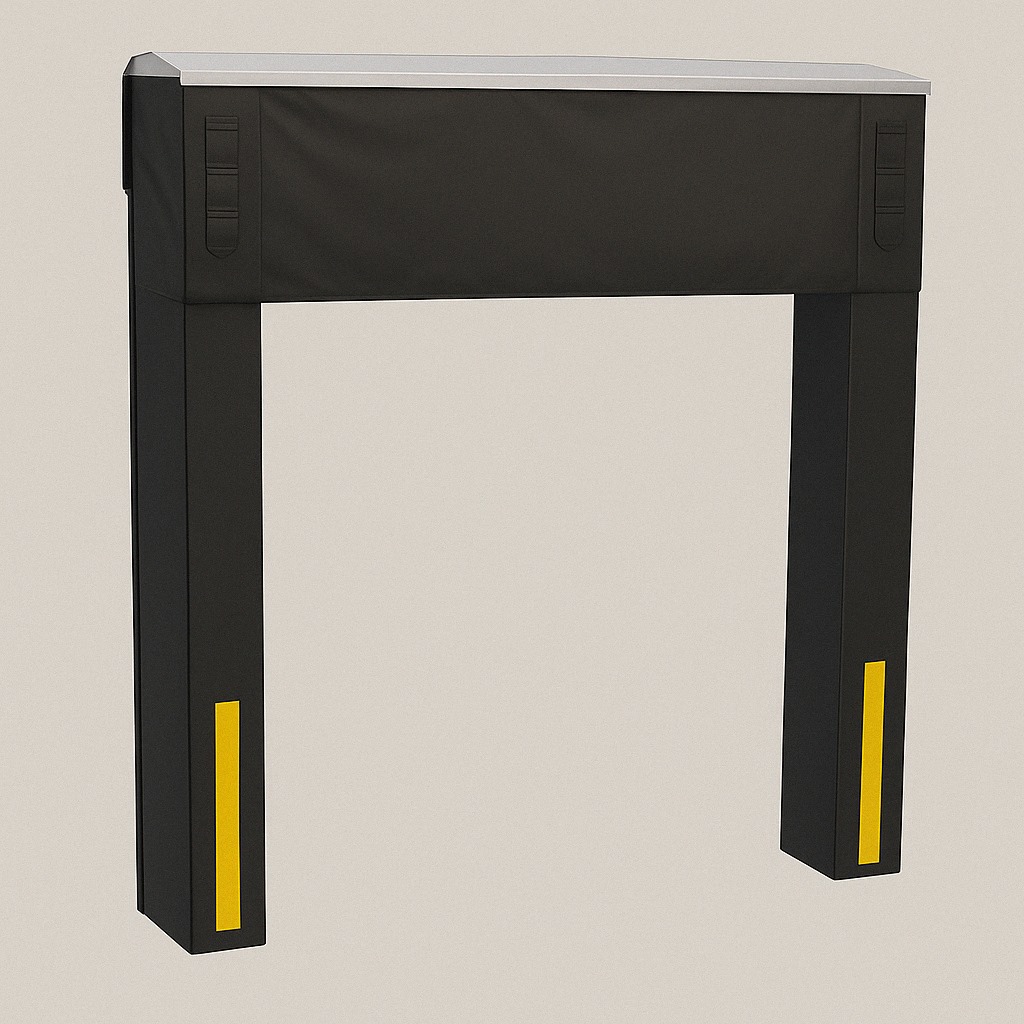

Dock Seal/Shelter Combinations

The Dock Seal/Shelter Combination is used with a 96″W x 120″H door. The top header is constructed of wolmanized lumber and is built with a slope to allow for water run-off. The header measures 114″W with a 30″L drop curtain. Side (verticals) measure 120″ tall and contain high-density foam mounted to treated lumber. The verticals are mounted on wooden boards (the face of the vertical measures 12″W and tapers to 9-1/2″ at the wall) allowing wall mounting down the length of the vertical pieces. Application with a flush dock to building in conjunction with an Edge-O-Dock use a 20″ projection Dock Seal. To ensure proper size complete and fax the survey sheet shown below. Units are non-returnable.

• Unique two-in-one design provides a dock seal & dock shelter
• Maximum compression design offers the maximum protection
• Built-in air tunnels allow air to escape when contacted by a trailer
• Mounting hardware and installation instructions make installation quick and easy
