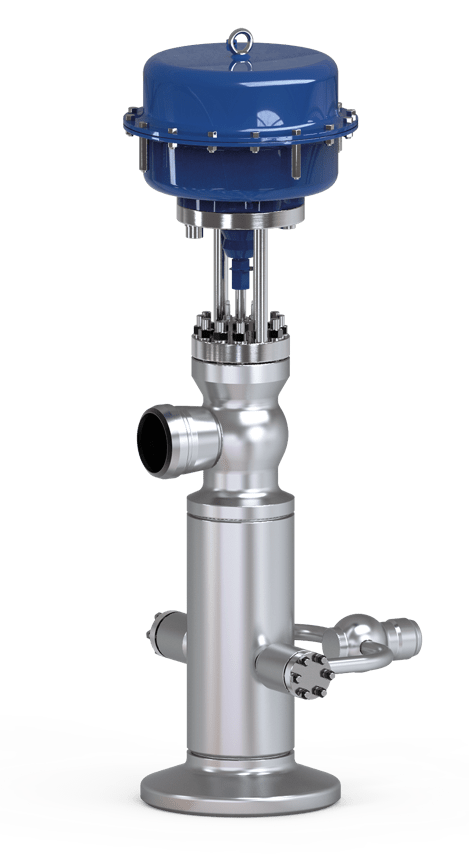

VLBP Steam Conditioning Valve

VLBP Valve: Versatile Solution for Combined Heat and Power Applications

The VLBP valve is a highly adaptable solution for combined heat and power (CHP) systems, designed to optimize the performance of industrial and utility power plants. Primarily used for conditioning auxiliary and process steam, it also functions effectively as a turbine bypass valve for various turbine types, including back pressure, condensing, power, and district heating turbines.

By facilitating controlled startup and shutdown of power plant loops with minimal heat loss, the VLBP valve ensures operational efficiency. It also handles abnormal conditions—such as rejection, turbine trips, pump failures, or fan disruptions—enabling a quick return to normal operations with minimal downtime.

Key Features of the VLBP Valve

1. Multi-Stage Pressure Reduction:
   • Ensures controlled pressure drop with single-stage controllability, enhancing system efficiency and reliability.
2. Quick Exchangeable Seat:
   • Simplifies maintenance and minimizes downtime with an easily replaceable seat design.
3. Spray Water Atomizing Nozzles:
   • Ensures precise desuperheating by injecting finely atomized water into the low-pressure outlet, optimizing steam temperature control.
4. Integrated Water Valve:
   • Combines functionalities to streamline operation and reduce system complexity.
5. Noise and Vibration Reduction:
   • Designed to minimize operational noise and vibration, improving the plant’s working environment and equipment longevity.
6. Desuperheating Capability:
   • Achieved through downstream water injection, ensuring safe and efficient temperature regulation in low-pressure outlets.
7. High Rangeability:
   • Supports a wide range of operating conditions, making it ideal for varied applications and dynamic system requirements.

Applications

• Auxiliary and Process Steam Conditioning: Efficiently manages steam temperature and pressure in industrial and utility power plants.
• Turbine Bypass Operations: Serves back pressure, condensing, power, and district heating turbines, supporting flexible power generation and heating systems.
• Abnormal Condition Management: Quickly stabilizes the system during events like turbine or pump trips, reducing downtime and ensuring system safety.

Benefits

• Efficiency: Reduces heat loss during startup, shutdown, and operation, enhancing overall plant efficiency.
• Durability: High-quality components and noise/vibration control extend the valve’s lifespan.
• Flexibility: High rangeability and multi-functional design enable integration into various plant configurations.
• Ease of Maintenance: Quick exchangeable seat and integrated functionalities simplify upkeep and reduce maintenance costs.

Why Choose the VLBP Valve?

The VLBP valve is a robust and versatile solution for CHP applications, offering reliable performance across a wide range of operating conditions. With advanced features like multi-stage pressure reduction, desuperheating, and integrated water control, it ensures efficient steam management, rapid recovery from system disruptions, and seamless integration into power plant operations. This makes it an indispensable choice for industrial and utility power plants striving for operational excellence and energy efficiency.
